MODEL: POE-MSPLT-4824

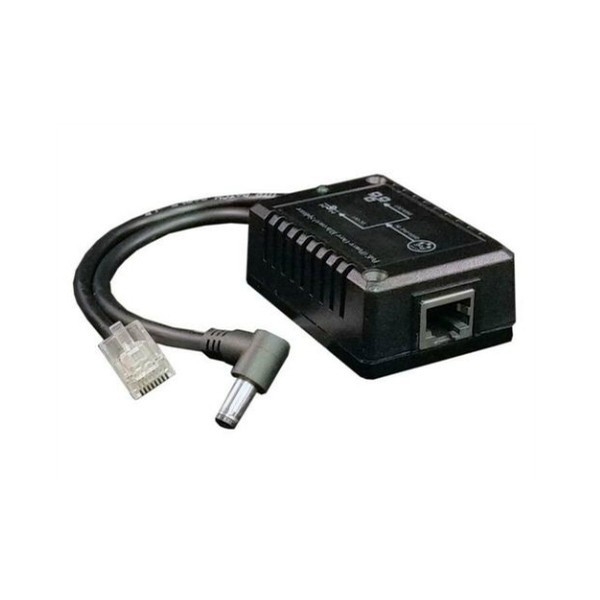

POE-MSPLT-4824 is a 10/100Mb splitter to power a non-POE device using POE. It has an 802.3af/at or 48VDC Passive PoE input. The 12W DC output is via a standard 5.5mm/2.1mm barrel connector on a 6in cable. Data output is thru a 6in CAT5 cable terminated with an RJ45 connector.

These POE splitters are the perfect solution for running 24VDC devices like cameras, access points, switches and sensors from a 802.3af or 802.3at or 48VDC Passive POE source. Wide -25 to +50C temperature range enables outdoor applications when mounted in weatherproof enclosures.

Inputs and outputs are isolated. They have protections for short circuit and over-current.
